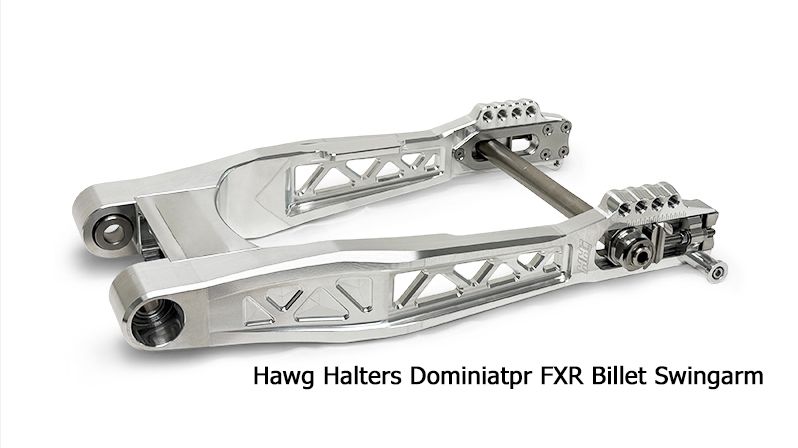

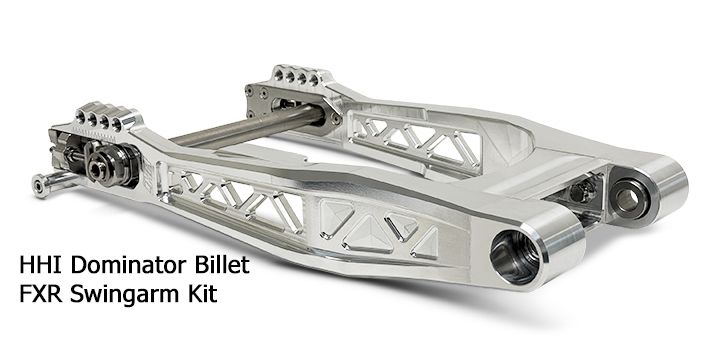

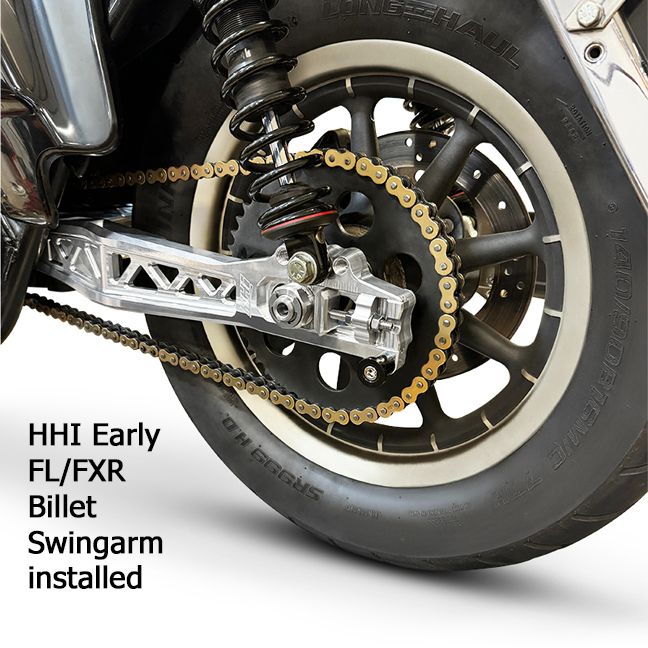

HHI Dominator Billet Swingarm for FXR & Early Model FL Touring Bikes.
Building a Performance FXR or Early FL touring bike, then HHI has the
Billet Swingarm for you!

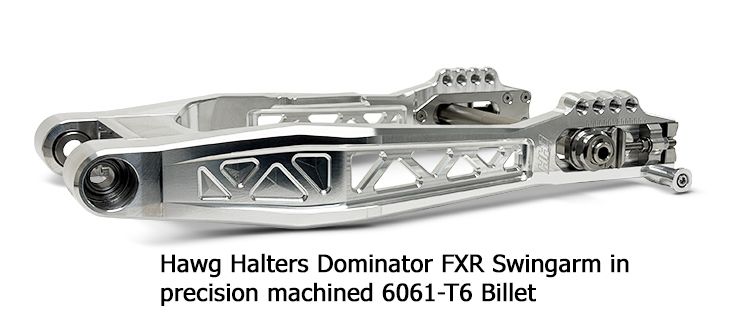

- Swingarm components feature precision machined 6061-T6 billet aluminum, Chromoly and Stainless steel.
- The HHI Swingarm reduces weight by over 20% compared to stock swingarm.
- The Main Swingarm is a three-piece design utilizing a massive interlocking, hi-strength keying feature. Thermal shrink fit of this feature provides precision alignment, maximum strength and permanent construction.
- Assembled with four hi-strength ARP ½” diameter 12 point polished stainless steel large flange bolts.
- Swingarm designed to work with shocks ranging in length from 10" to 15".
- Positive lock adjustable position axle locator system delivers 2 inches of full axle slot adjustment (2.5x greater than stock).
- Keyed axle locator plate eases axle installation.
- HHI Exclusive stainless steel inner swingarm axle protector plates allow for maximum axle installation torque.
- Protector plates prevent damage to swingarm billet inside faces and promotes positive axle position.
- Multi-point shock mount system that adjusts from stock to +1/2 inch ride height.
- Fits most shock brands without adding offset spacing and longer bolts.
- Extreme strength lightweight Chromoly hollow axle made from 150ksi heat treated medium carbon steel alloy.
- Axle precision machined for close tolerance fit and Nickel Plated for long lasting durability.
- Includes custom machined Stainless Steel 36mm hex axle nuts.
- Stainless steel stock type axle nut retaining clips supplied.
- Integral brake mount designed for 2000-up FL stock caliper and brake line
- Ships fully assembled with pivot bearings and sleeves installed. A complete kit ready for installation.

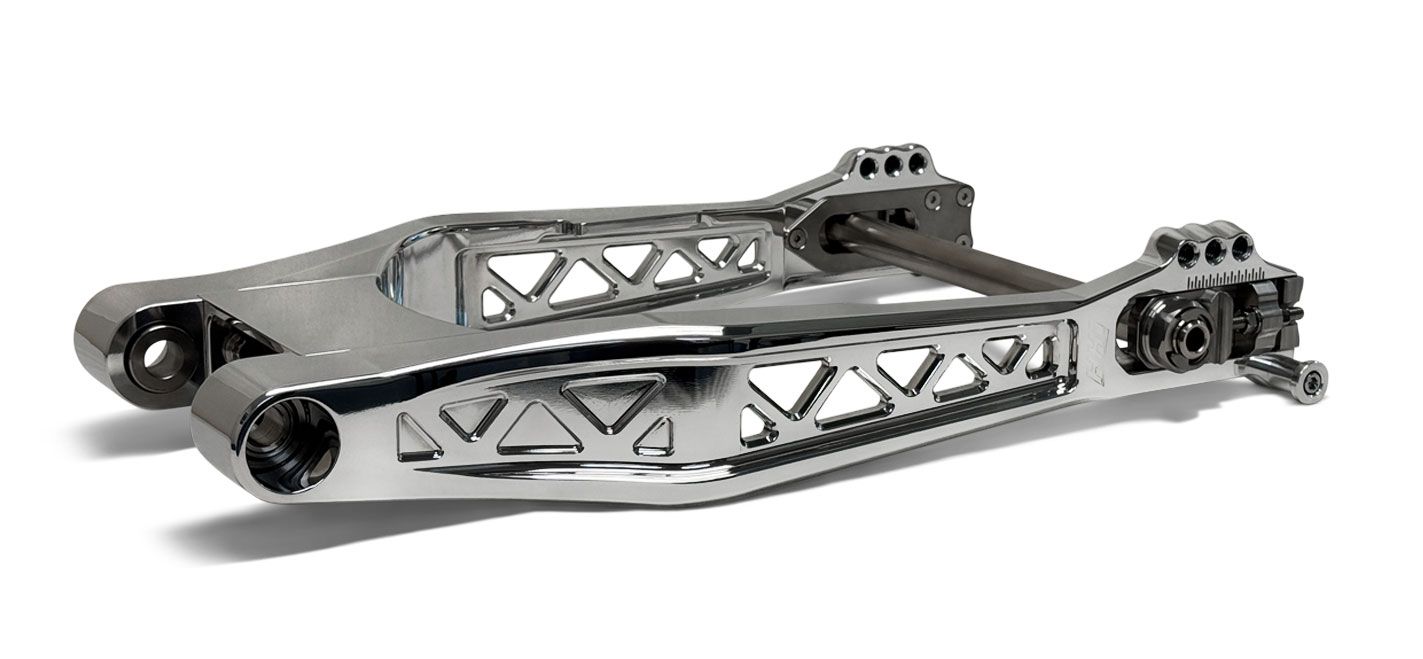

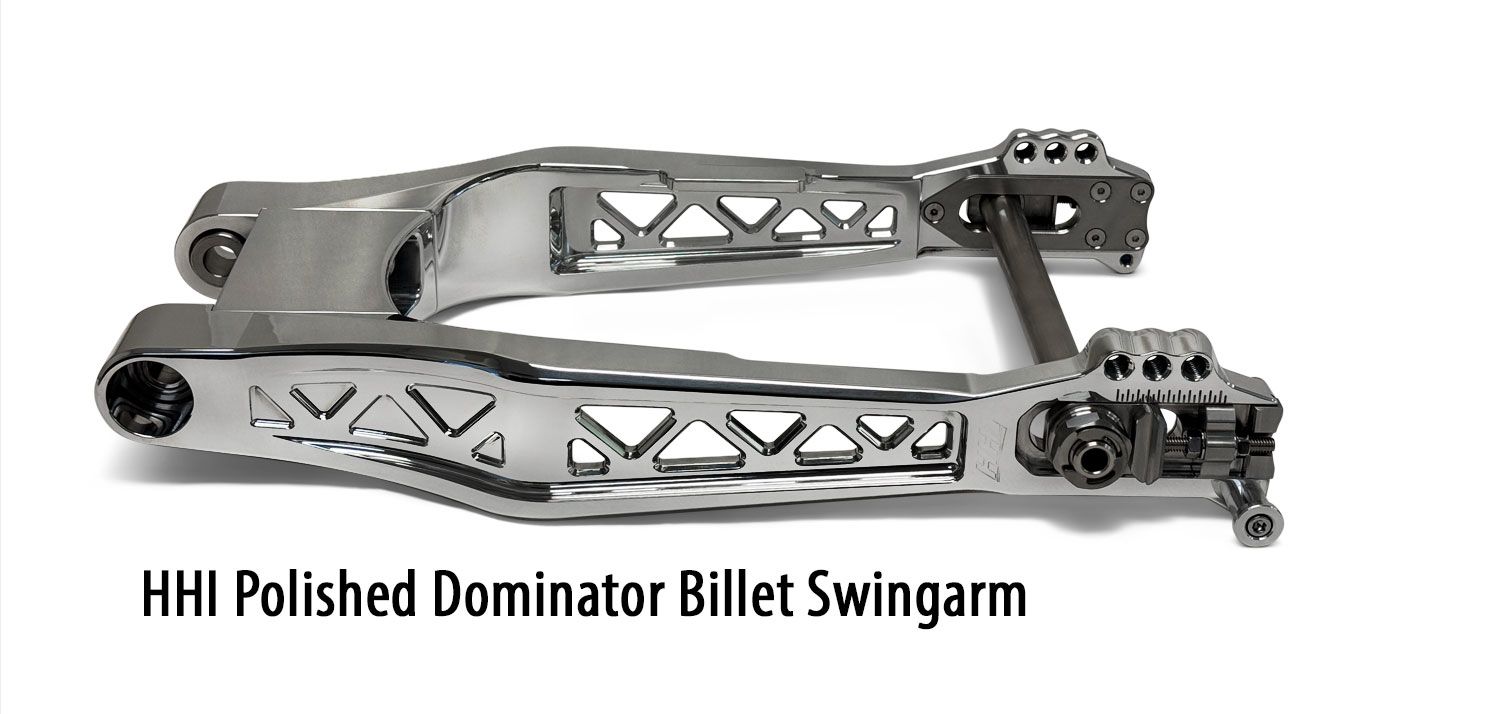

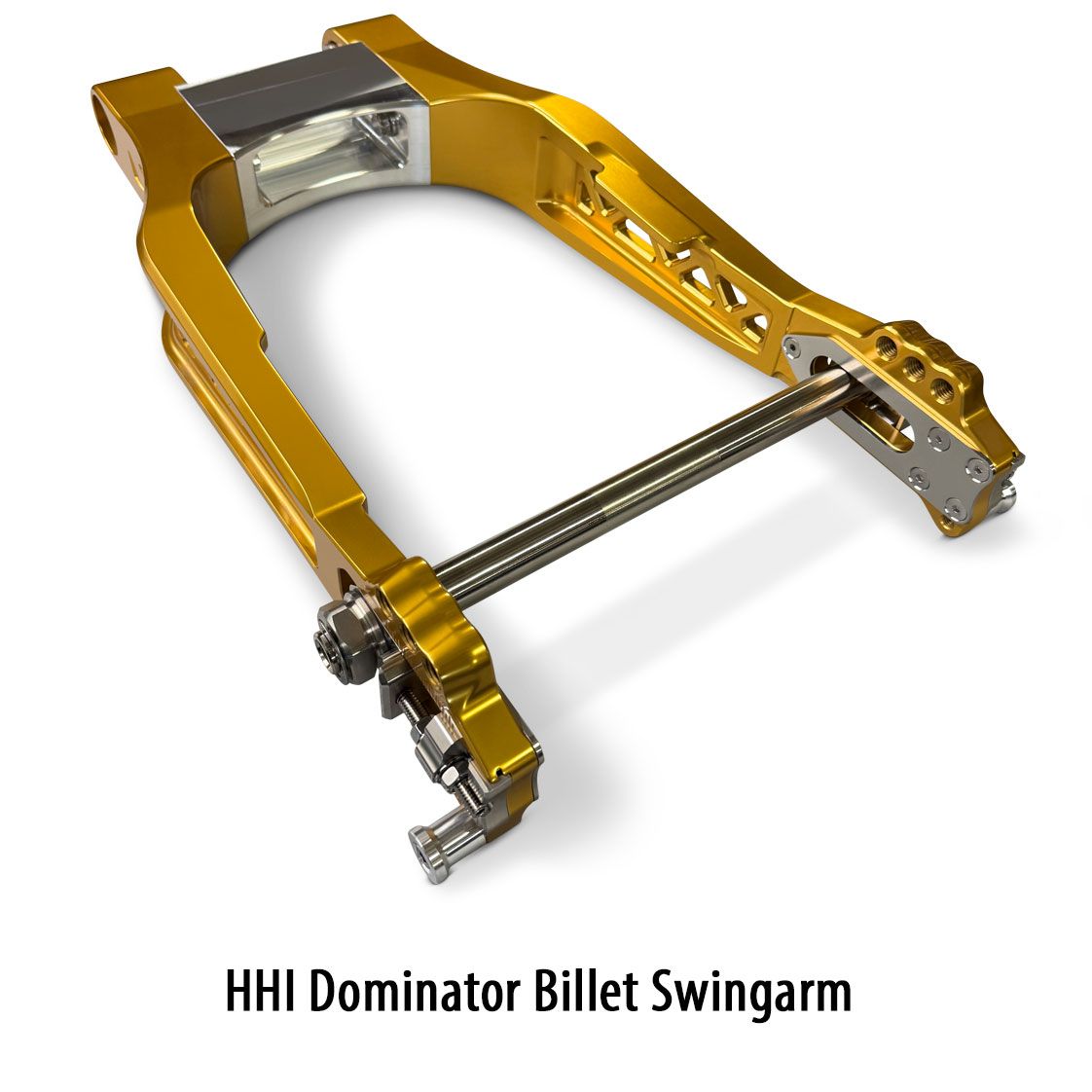

Available in Black, Inca Gold, & Machine finish.
For further information and to order call 1-877-442-5837 or send an email to sales@hawghalters.com.
