Here at Hawg Halters Inc., we are all about further advancing our customer's knowledge and understanding of our products. We have provided the following Tech Tips documentation for you to look over and learn more about HHI products.Have fun!


LiteraturePDF Documents Frequently Asked QuestionsRake ChartInstructional Videos

Printable PDF Tech Documents (Click the links below)



facebook

For Email Marketing you can trust.
For Email Marketing you can trust.

HAWG HALTERS LITERATURE

2021 HHI / Renegade Catalog

2018 HHI Catalog

HHI & Renegade Wheels Products are proudly Made in the USA!








 TECH LINKS

Air Ride

AirFX Install Instructions

AirFX Front and Rear Schematic

AirFX Air Controls Basic

AirFX Air Controls Front and Rear

 Air & Electrical Controls with Q-Pak

AirFX Air Controls Front and Rear With Shut Off

AirFX Controls Rear Instant-up

AirFX Front and Rear Set Up

FXA-1018 FL-COMP BRACKET



CALIPERS / BRAKES

Caliper on 2000 and newer models

Caliper on 1999 and earlier models

500 Series 4 Piston Exploded View

100 Series 4 Piston Exploded View

Driveside Brake Kit Assembly

Driveside Brake Specs

Driveside Instructions

Custom Springer Caliper Kit Assembly

Hub Modification Specs for 18" Rotor

Sprocket Brake Assembly

BRAKE HOSE KITS

BHK-029 Kit Photo

BHK-031 Kit Photo


FORK LEG ASSEMBLY

2013-earlier Progressive Monotube Using HHI Extensions Instructions

Fork Leg Assembly Schematic

Fork Leg assembly Schematic - Metric

2014 & Up Fork Assembly Schematic (includes Limiters and Preload)


 FORWARD CONTROLS

Standard HHI Forward Control drawing relative to the stock set up.

Extended HHI Forward Control drawing relative to the stock set up.


  HANDLEBARS / HAND CONTROLS

Handlebar Installation Instructions

Cable Clutch Schematic

Hydraulic Clutch Schematic

Momentary Switch Converter

Switch Harness 96-06 All models except touring

Switch harness 07 and up All models except touring

Switch Harness 1996-2006 Touring Audio and Cruise

Switch Harness 2007-2013 Touring Audio and Cruise

Switch Harness 1996-2006 Road King Audio and Cruise

Switch Harness 2007-2013 Road King Audio and Cruise

105-110 Exploded View  2007-2013 Touring

Internal Throttle Installation Instructions

Odometer Self-Diagnostics



NECK RAKE

Neck Rake Builders Kit Instructions               written by American Iron Mag.

Neck Rake Builders Kit Instructions

Roadglide Fairing Bracket Kit Specs

08 & Earlier Neck Template Short & Long Neck

09 & Up Neck Template Short & Long Neck




Renegade Wheels Products

Air Cleaner Schematic




TIRES

Avon Tire Pressure Specs.


TRIPLE TREES

2014 & Up FL Short Neck Raked Trees 49mm (49FLMR12S)

2013 & Earlier 41mm Touring / Trike Installation Instructions

2013 & Earlier 41mm FL Touring / Trike Schematic

2013 & Earlier 41mm FL Touring Shortneck Schematic

2013 and earlier 41 FLMX 23 Triple Tree Installation Instructions

2013 and earlier 41FLMX23 schematic

2014 & Up 49FLMX23 Triple Tree Installation Instructions

2014 & Up FL Touring Triple Trees Instructions

49mm Rocker Tree Schematic

 Travel Limiter Install Instructions

Triple Tree Clamp Bushing Install & Removal Instructions

Custom Triple Trees

2017 & Earlier Fat Boy/Heritage Triple Trees

2014 up Steering head Spec part 1

2014 up Steering head Spec part 2

Inserts / Extensions Specs 49mm Touring Model




F.A.Q.





Air Ride

When installingfront only air ride kits;

Review the individual components neededif the bike alreadyhas a mix of other air suspension parts as follows;

Front air cartridge
Front Valve(s)
Switch harness

If “instant up” is desired then you would need an FXA-2012-1 on 49mm bikes (with our rear shocks). We generally recommend (FXA-2012-2) dual tanks on 41mm front bikes or 49mm bikes with our front shocks and Monroe rear shocks.  The Monroe shocks require 2X pressure and volume.

Also, confirm there is an adequate compressor to work with our pressure switch setting.  A Viair 95C or larger works fine. Legends, tricky air,  or the smaller gas compressor will not work, those compressors do not generate enough peak pressure. Dirty air, Platinum, Arnott (with the larger comp), Skully, Xotic kits all have compatible compressors.

Brake Hose Kits

Part # BHK-031 Single Disc Conversion Kit, ABS, 14 up models. Install Directions. First, replace the upper hose. Use the short hose, 60”, that came with the kit, also use one of the 90-degree banjo fittings and the large hard fitting at the top on the master cylinder end.
Next, remove the line on the right side of your ABS unit and block that off with the spacer and 2 washers provided, and your stock banjo bolt. Lastly, use the 72”  hose and fittings to change your left lower hose.

Calipers

Are our brake pads included when I purchase HHI Calipers? YES.

Does HHI offer caliper rebuild kits? YES.
Click here.

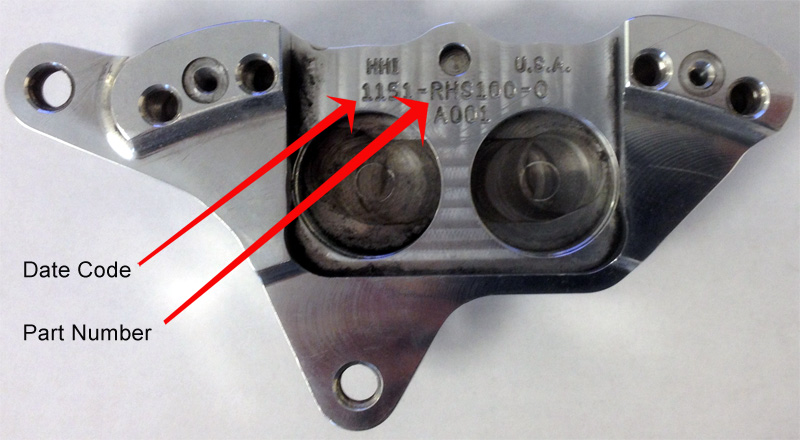

Will HHI rebuild my HHI caliper? YES. Some of our older-style calipers can no longer be rebuilt. Typically we will need the date code to determine our ability to rebuild. Calipers made before 2003 usually can not be rebuilt. Click Here to view the date code placement on caliper.

Where can I purchase HHI replacement brake pads?
Click here. Brake pads can also be ordered from HHI Distributors and dealers worldwide.

When doing a single disc conversion on a 2008-later Touring and using a 6 piston caliper with a 13” rotor is it necessary to change the master cylinder? It’s not necessary to change the m/c however it will have less brake lever travel and a stiffer lever feel.  The smaller bore size of 9/16” like that used on a Softail will improve brake performance and lever response but not significantly.

When doing a single disc conversion on a 2007-earlier Touring model and using a 6 piston caliper with a 13” rotor is it necessary to change the master cylinder ? Yes it is a requirement to change the stock 11/16” bore m/c to a 9/16” bore size as used on a single disc brake model bike.  This change provides the correct operational volume and pressure in a single brake caliper application. The smaller bore size of 9/16” is typically used on models such as a Softail or Dyna

What is the bolt pattern for HHI calipers?  All 99 earlier direct bolt-on calipers are 3.5". 2000 up models are 2 7/8"

Fork Legs

What is the proper amount of fork oil?  Always refer to your Harley manual to determine correct fork oil levels. Typically 41mm HHI fork legs: Use 10 ounces wet, 11 ounces dry. 49mm HHI fork legs; use 22 ounces wet and 24 ounces dry. Adjust per your manual's directions. NOTE: Use 2 ounces less if fork legs contain travel stop limiters (bump stops).

What weight fork oil is recommended? 20 weight.  Harley Davidson Screamin Eagle Performance Fork oil is 20 weight. Type E and type B Harley Davidson fork oil are lighter weight and not recommended.

Does HHI use special seals in fork legs? HHI seals are the same size as stock Harley seals.

TRIPLE TREES

How do I remove the pinch bolts from HHI Triple Trees so I can remove the fork tubes? If your HHI Triple trees use pinch bolts click here. for installation or removal instructions..

HHI 18" ROTOR

How does the 18” rotor mount?

 The outer clamp ring is used to secure the rotor to the hub.  When ordering a wheel and an 18” rotor the clamp ring is included at no additional charge as it is supplied with the wheel assembly.

 You can order the clamp ring separately as would be needed if ordering just the 18” rotor to fit an existing wheel.  However if this is the intent, please remember the hub has a special offset to accommodate the big rotor.  If you are desiring to convert a Renegade wheel to an 18” rotor we would sell you a complete hub assembly which would include the clamp ring.  Otherwise, send us your hub and we will modify it for a nominal charge.

Can I order the clamp ring separately? Yes

Will HHI modify my hub for an 18" brake ? Yes, HHI will modify your existing hub to take the New HHI 18" brake conversion for a nominal charge. Please call the sales department for further information. 1-877-442-5837

Handlebars

 How do I install HHI Bars on my 2015 up Road Glide? HHI 2015-up Road Glide bars do not use the factory locating pins which restrict the adjustment of the bars and controls. Installation of these bars will require the removal of the locating pin found in the lower riser.  This can be accomplished without removal of the stock riser by simply pushing down on the pin until it is flush.  The new style Road Glide master cylinder clamps also have a locating feature that will need to be removed and clearanced for proper fitment with our bars.  Alternatively, one can use the traditional style clamps as found on all other HD models.






APPLICATIONFORK COVER LENGTH
Stock Size Wheel+1
26" Wheel Short Neck/Air Ride+2
26" Wheel Long Neck+3
30" Wheel Long Neck & Short Neck+4



 The chart below provides helpful tech info. for various applications.

DESIGNATIONMODEL NAMEFork StopsStock Rake /
Tree Width
Fork Tube SizeRecommended HHI Raked TreesNeck Lock Function
 TOURING MODELS (FL) (2014) ALL TOURING MODELS N/A 3 49Tree Rakes are the same as 13 and earlier, shown in the chart below. Frame rake for
23" Wheel 7°
26" Wheel 7° or 9°
30" Wheel 12°
 YES
TOURING MODELS

FLTTour GlideN/A08 earlier 4 09 up 3



  Fits all 1987 and up model baggers with standard late model ignition.









412 Wheel Models
Stock Wheel- none available
21" Wheel-none available
23" Wheel - 6° bolt-on
23"Wheel -7° raked neck
26" Wheel - 9° raked neck
30" Wheel - 12° raked neck
Must use neckpiece when installing 23",26", or 30" wheels except 6° bolt on.

YES
FLHElectra-GlideN/A41YES
FLHSElectra-Glide SportN/A41YES
FLHTElectra-Glide StandardN/A41YES
FLHTCElectra-Glide ClassicN/A41YES
FLHTCUElectra-Glide Ultra ClassicN/A41YES
FLTRRoad GlideN/A41YES
FLHRRoad KingN/A41YES
FLHRCRoad King ClassicN/A41YES
FLHRSRoad King CustomN/A41YES
FLTCTour Guide ClassicN/A41YES
FLTCUTour Guide Ultra ClassicN/A41YES
FLTRSEIScreamin Eagle ClassicN/A41YES
FLHXStreet GlideN/A41YES
FLHTCUTGTRI GLIDE

Stock wheel use 9° trees 23" wheel use 12° trees  26" wheel use 12° trees and rake frame.

Also need H.D lower fairing skirt
part #58208-96A 2013 Earlier

Outer fairing lower cover (skirt) p/n 57000182 should be replaced with the standard two wheel version p/n  57000017
(also applies to the 2014 and up)

The stock steering damper will not reinstall which is generally not required when raking with our triple tree and stock size wheel.

The rear brake remote reservoir needs to be relocated.

YES
 FLRT Freewheeler

 No Bolt-On Trees Available

HHI Trees will work if Bike converts to 2014-later Road King style nacelle for installation.  Also must replace Freewheeler fork covers.

The rear brake remote reservoir needs to be relocated.



SOFTAILS

FXCWSoftail RockerHFS-00508 up 0
Narrow Glide
HHI MidGlide
8 7/8" wide
HHI WideGlide
9 7/8" wide


49

Narrow Glide Trees Not Available
Stock Wheel use 3°
21" Wheel use 3° Mid Glide or Wide Glide Glide

23" wheel use 5° Wide Glide
26" wheel use 6° Wide Glide

23" wheel applications needs to convert to wideglide, need longer axle, wideglide hub, and fender modifications.


FXCWCSoftail Rocker CustomHFS-005    NO
FXSTSoftail StandardHFS-0052   NO
FXSTCSoftail CustomHFS-005241  NO
FXSTSSpringer SoftailN/A  NO TREES AVAILABLE NO
FXSTDSoftail DeuceHFS-005  41

21" wheel use 3 or 5°
23" Wheel use 5°
26" Wheel use 6°

 NO
FXSTBNight TrainHFS-00524121" wheel use 3
23" wheel 5°
NO
FLSTBad BoyHFS-005
FLSTFHeritage SoftailN/A041

No trees available for stock wheel on 2 wheelers. Raked trees may be used for trike and side car applications with stock wheel.

21" wheel use 4°
23" wheel use 4°
26" wheel use 6°

NO
FLSTCFat BoyN/A0 NO
FLSTFBFat Boy Low    NO
FLSTN
FLS
Softail DeLuxe
Softail Slim
N/A 41 NO
FLSTSHeritage Softail ClassicN/A0   NO
FLSTCHeritage Springer SoftailN/A0  NO TREES AVAILABLE
FLSTNSoftail Springer ClassicN/A0  NO TREES AVAILABLE
 Heritage Softail Special - Nostalgia DeluxeN/A0   NO
FXSBBreakout (includes 2014)HFS-005 49WGNo Cover Holes, No ABS mounting provided
5° for 23" wheel
6° for 26" wheel
NOTE: CVO version - No Cover Holes, No ABS mounting provided
NO

DYNAS

FXDDyna Super GlideEFS-00106 up 0 21" wheel use 3 or 5°
23" Wheel use 5°
"Wheel use 6°
YES
FXDBDyna Street BobEFS-00106 up 0 49YES
FXDB-DDyna Daytona-BeltEFS-001
FXDB-SDyna Sturgis-BeltEFS-001
FXDCDyna Glide CustomEFS-001
FXDFDyna Fat BobEFS-00108 up 0 49YES
FXDGDyna Glide SturgisEFS-001
FXDXDyna Glide SportEFS-001
FXDS-CONVDyna ConvertibleEFS-001
FXDXTDyna Super Glide T SportEFS-001
FXDLDyna Low RiderEFS-00191-05 0 NO
FXDXDyna Super Glide SportEFS-001
FXDWGDyna Wide GlideEFS-00191-05 2 NO
 FLDDyna Switchback    NO TREES AVAILABLE
SUPER GLIDES

FXSSuper Glide Low Rider
N/A


39mm

Narrow Glide

1987 and up 39mm
NO TREES AVAILABLE for 86 and ealier with 35mm tubes
Conversion Kits for some models are available.

FXSBSuper Glide Low Rider - Belt
FXBSuper Glide Sturgis
FXEFSuper Glide Fat Bob
FXRSuper Glide Rubber Mount
FXRPSuper Glide Police
FXRSSuper Glide Rubber Mount - Sport
FXRS-SPLow Rider Sport
FXRS-CONVLow Rider Sport Convertible
FXRCLow Glide Custom
FXRDSport Glide Grand Touring
FXRDGDisc Glide
FXRTFXR Touring - Sport Glide
FXRT/PSport Glide Police
FXLRLow Rider Custom
FXLR-FXLow Rider - Evolution
FXWGWide Glide

SPORTSTERS
XL4-Speed 883 SportsterEFS-001039mm21" Wheel 3° trees
23" Wheel5° trees
Trike applications 5° trees
26" wheel, no trees available.
NO
XL883883 HuggerEFS-001NO
XL883C883 CustomEFS-001NO
XL883L883 LowEFS-001NO
XL1100Standard 1100EFS-001NO
XL1200Standard 1200EFS-001NO
XL1200C1200 CustomEFS-001NO
XL1200L1200 LowEFS-001NO
XL1200N1200 NightsterEFS-001NO
XL1200R1200 RoadsterEFS-001NO
XL1200S1200 SportEFS-001NO
XLCH4- Speed 883 Kick StartEFS-001NO
XLCRCafe Racer 1000EFS-001NO
XLH4-Speed 883 Electric StartEFS-001NO
XLH883883 HuggerEFS-001NO
XLH1200Standard 1200EFS-001NO
XLH1200SSportEFS-001NO
XLS4- Speed RoadsterEFS-001NO
XLX4-Speed 1000EFS-001NO
XR10001000 with Competition HeadsEFS-001NO
 XL 1200V 72 EFS-001 NO
 XL1200X Sportster 48   49 No trees available for 2016 and up Sportster 48 Models
V-RODS

VRSCAV-Rod with more optionsN/A4 2002-201149mm
2012-2017 55mm

Trees are available for 55mm inverted and 49mm conventional front ends, for trike use and 23" wheel 2 wheel applications use 6° trees.

For 26" wheel use 8° trees.





YES
VRSCBBasic V-RodN/A4  2002-201149mm
2012-2017 55mm
YES
VRSCAWV-RodN/A4   2002-201149mm
2012-2017 55mm
YES
VRSCRStreet RodN/A4  2006-2007 55mm
2012-2017 55mm
YES
VRSCDNight RodN/A4  2012-2017 55mmYES
VRSCDXNight Rod SpecialN/A4 2006-2011 49mm
2012-2017 55mm


YES
 VRSCF Muscle  4 2009-2017 55mm

HONDA
1500Goldwing   4° or 6°YES
1800Goldwing

4° or 6°

Roadsmith Trike kit use +1 extensions

YES




Neck Rake Instructional Video (3 Videos)



Click here to buy HHI Neck Rake Frame Kit

Click here to buy HHI Neck Rake Builders Kit

Click here to Buy HHI RoadLoK Calipers
