Touring Model Trees 2013 - earlier

Tap for gallery

$796.00


Product Information
Specification

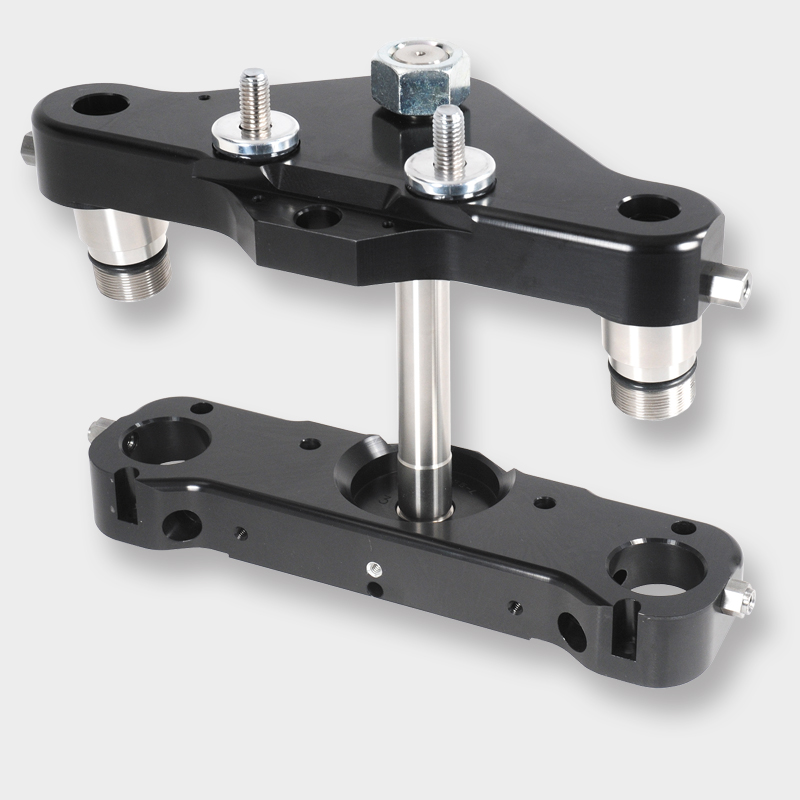

HHI FL Triple Trees are made for use in custom touring model applications. These trees are only for use with installation of 23", 26", or 30" wheels in conjunction with our weld in neck piece. The proper length insert/extension for each sized wheel is included with tree options below. Available in raw machine or black anodized finish.

Trees work with all 1987-2013 Bagger/ touring models with standard late model ignition location.

Rakes are available in 7°, 9°, and 12°.

Choose 7° trees when adding a 23" wheel.
Choose 9° trees when adding a 26" wheel.
Choose 12° trees when adding a 30" wheel.

ABOUT INSERTS: Threaded inserts are available in four sizes. See uses below.

Standard insert is .160 center section, overall length 2.12 used in FX applications.
Fat Boy/ FL insert is 1.160 center section, overall length 3.12 used in FatBoy/FL applications.
Extended +1 insert is 2.160 center section, overall length 4.12 used in 26" wheel application
Extended+2  insert is 3.160 center section, overall length 5.12 used in 30" wheel applications.
The insert applications above assume standard/stock tube length.

NOT COMPATIBLE WITH 2014-present MODELSClick Here for these models.

Product Code
OriginMade in USA
Weight10lb
