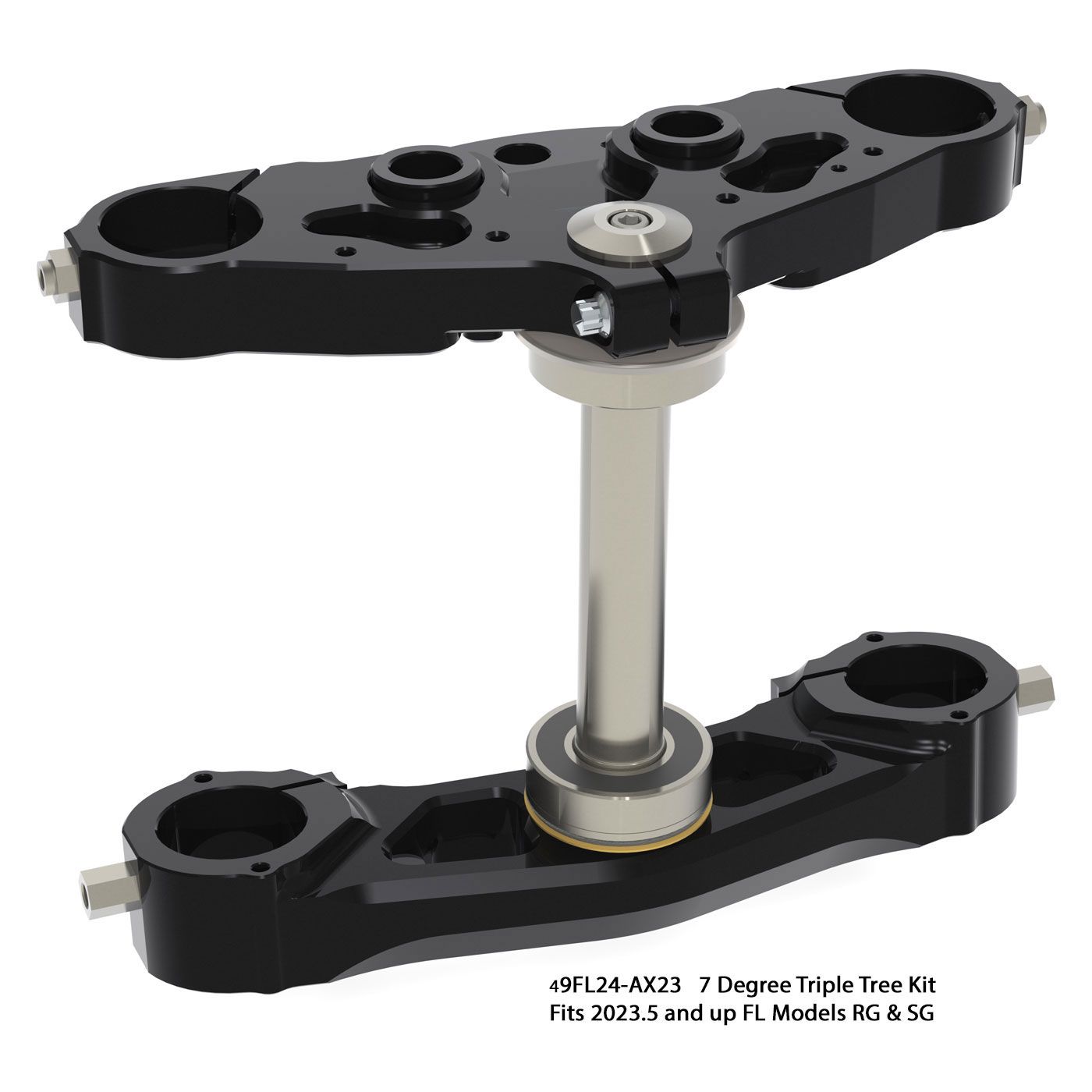

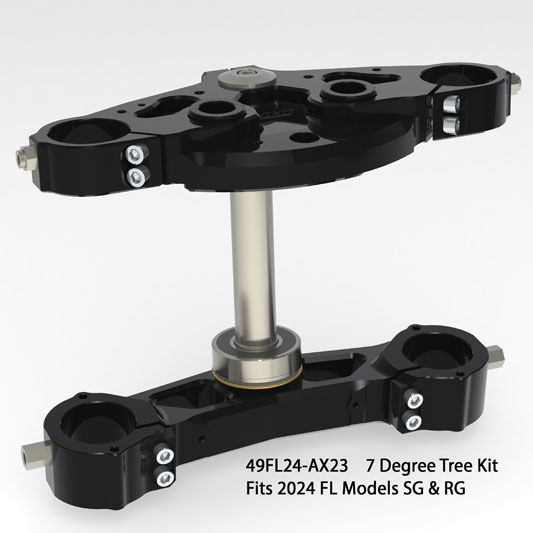

NEW 49 mm X-23 Bolt-On Triple Tree Kit

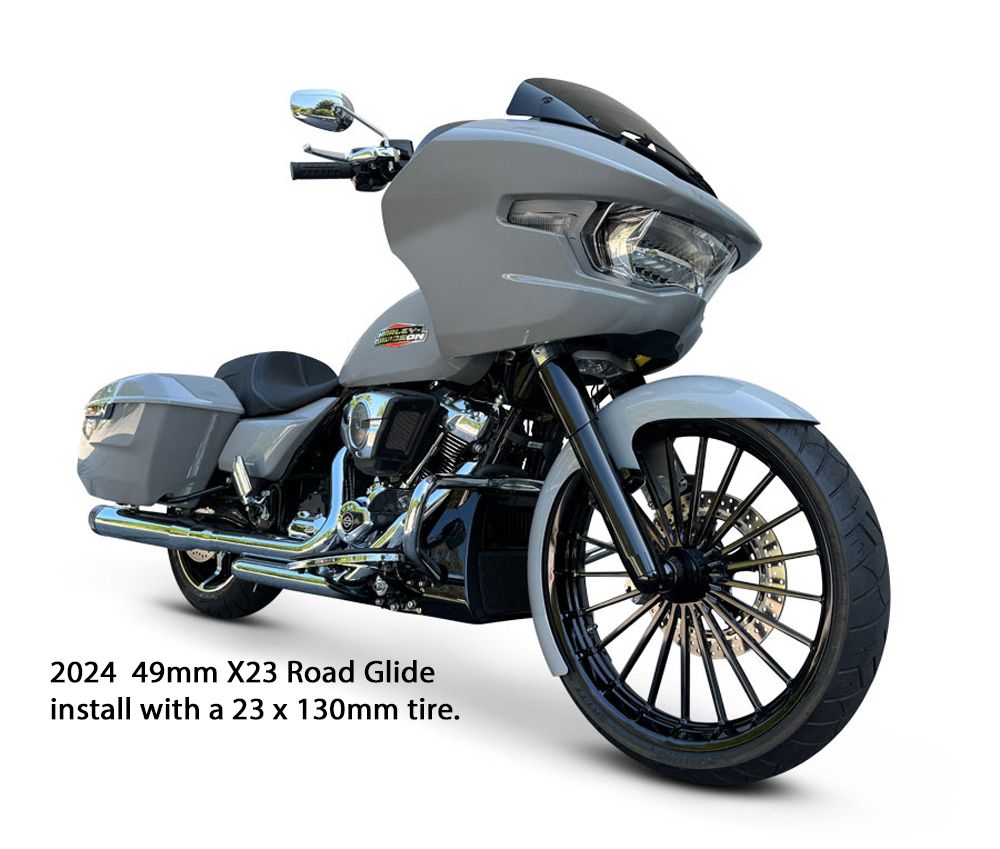

Fitting the NEW 2024 FLHX Street Glide and the FLTRX Road Glide, HHI now offers a 49MM BOLT-ON raked triple tree kit for a 23"x130mm or 21"x 180mm wheel/tire installation.
The HHI proven design geometry of this triple tree results in a trail measurement similar to the stock factory HD specifications. This new kit provides a quick, easy, cost-effective method of safely installing a 23"x130mm or 21" x 180mm wheel and tire on any of the NEW fairing style 2024 Road Glide / Street Glide models.
The New HHI kit offers many exciting features and benefits:
- Fits the 2024 Standard Street Glide and Road Glide Models with 49mm conventional fork and NEW fairing design
- 7 degree triple tree rake results in stock trail geometry and clearance for a full wrap fender
- Provides responsive and stable handling
- Performs as good or better than stock
- Direct bolt-on, NO modifications necessary
- Positions the front wheel forward approximately 2"
- Headlight angle can be adjusted without the use of a raked bezel kit
- Does not require fork extensions and uses stock length fork covers
- Kit includes fork travel limiters to prevent fender interference
- Provides a fully functional Stock Fork Lock.
- Available in Machine or Black finish
HHI recommends the rear wheel size to remain stock of 16 x 5.5 or upgraded to an 18 x 5.5 wheel with a properly load rated 180mm tire.
