Drive Side In-Board
Rear Brake Systems
HHI continues to set the standard with our ever popular
Driveside Inboard Brake System. We now have several
designs to fit more applications than any of our
competitors.

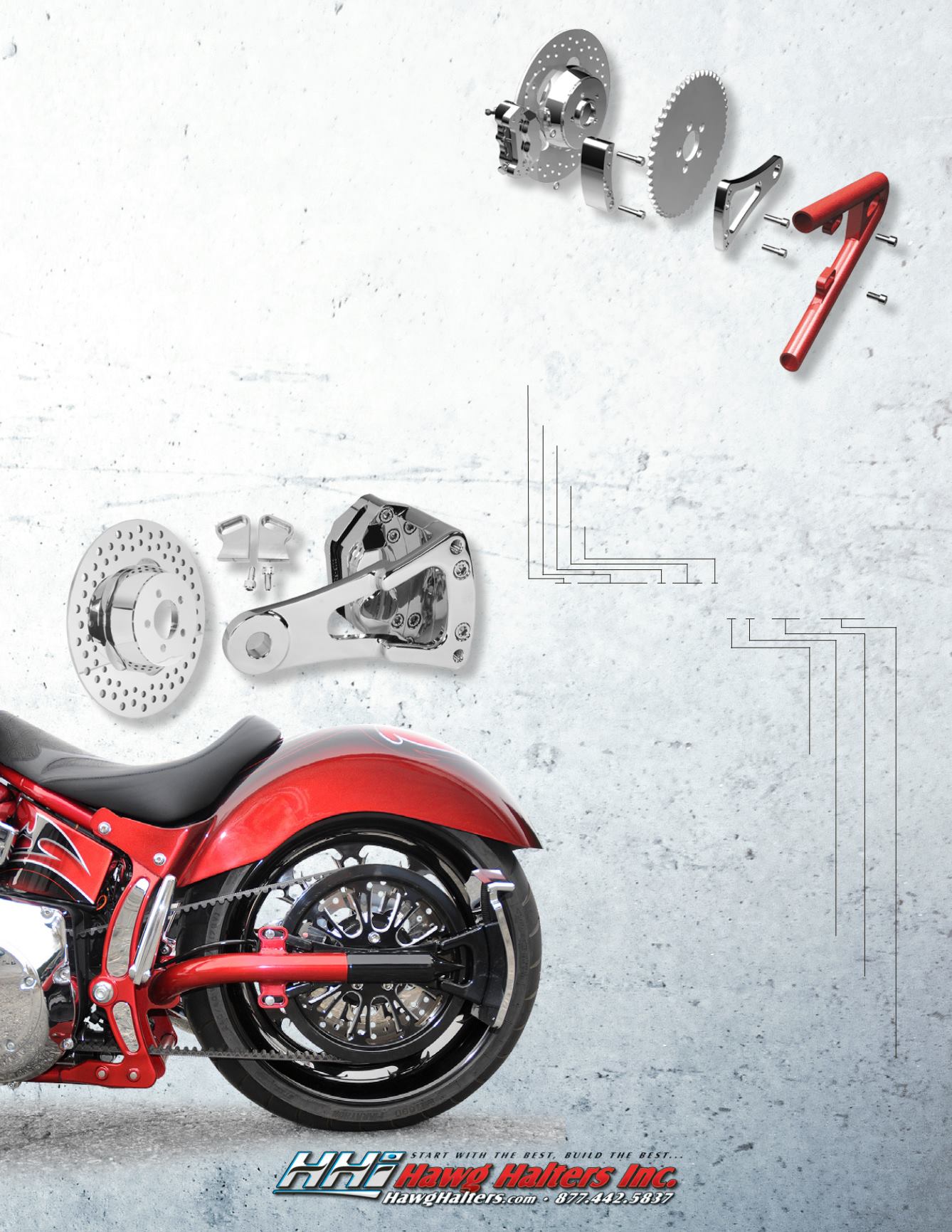

This system is designed to locate the brake caliper and
rotor behind the drive pulley or sprocket providing an
uncluttered view of your custom wheels. Utilizing a
purpose built version of our proven 4 piston caliper and an
engineered attachment system, a bullet proof system can
be configured to match your requirements. Applications
include 18" x 5.5" and wider billet wheels and 18" x 8" and
up spoke wheels, left or right side drive, belt or chain drive.
We have also developed an offset rotor system to fit most
custom wheels available. You can adapt a wheel without
an inboard rotor or convert a conventional wheel to the
driveside brake set up.
-
(C)
Complete Kit - includes rotor & hat,
omit letter ā€œCā€ when not required
-
(RKDS)
Rear Kit Drive Side
-
(L)
Left Side or
(R)
Right Side
-
(CC)
Chrome,
(PP)
Polish, or
(AB)
Black Anodize
-Axle size (Bracket)
(1)
3/4" Axle or
(3)
1" Axle
CRKDSLCC315-RS-TLD
Belt width
(Spacer)
1 1/2" Belt - Std, 1.77 wide spacer
(0)
1 1/8" Belt/Chain, 1.40 wide spacer
(1)
2" Belt, 2.00 wide spacer*
(2)
Special, 2.25" wide spacer
(3)
Hub to Pulley Back Spacing
(Rotor Hat)
No hat or rotor supplied
(0)
1/8" Offset, 1" axle - 1 1/2" belt
(1)
1/8" Offset, 3/4" axle** - 1 1/2" belt
(2)
1/8" Offset, 3/4" axle** - 1 1/8" belt
(3)
1/8" Offset, 1" axle - 1 1/8" belt
(4)
3/8" Offset, 1" axle - 1 1/2" belt
(5)
1/4" Offset, 1" axle - 1 1/2" belt
(6)
1/2" Offset, 1" axle - 1 1/2" belt
(7)
(Optional) Single Tube Round Swingarm
(RS)
(Optional) Chain Drive application
(CH)
Optional Tag/Taillight, Left Side Diamond
(TLD)
Optional Tag/Taillight, Right Side Diamond
(TRD)
Optional Tag/Taillight, Left Side Moon
(TLM)
Optional Tag/Taillight, Right Side Moon
(TRM)
* Also used when 1 1/2" pulley does not have recessed mounting
hardware.
** Early style tapered bearing hub, For sealed bearing hub with 3/4"
axle, use (-1) 1" axle or (-4) hat.
