19

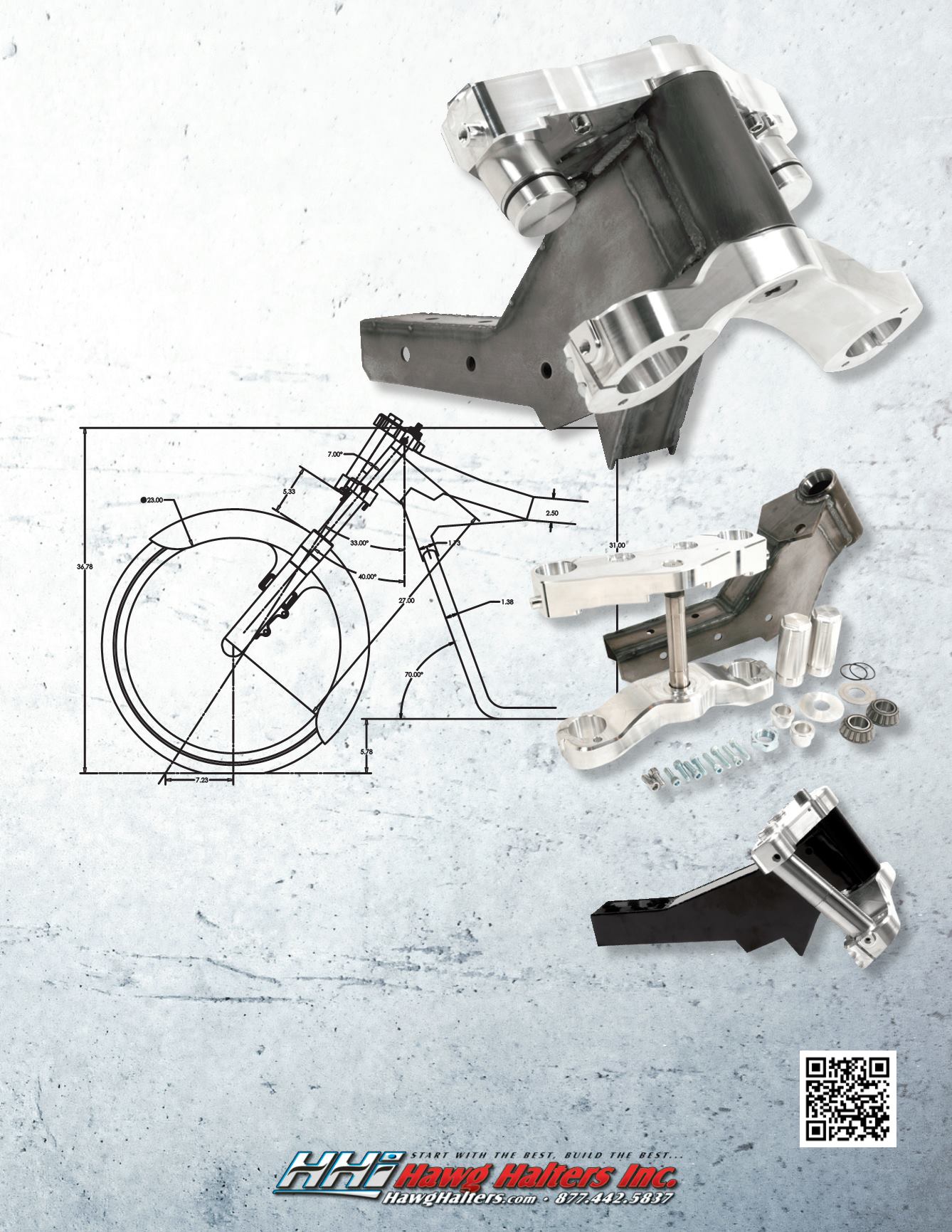

NRBK9S-12-14
————————————————
NRBK9S-12-14
————————————————
NRBK9S-12-09
————————————————
7.00°
23.00
27.00
33.00°
36.78
7.23
40.00°
1.73
1.38
70.00°
2.50
31.00
5.78
5.33
Neck Rake Questions?
See the Video at
HawgHalters.com
Smart Phones
Snap Here!
SHORT LENGTH NECK
YEAR WHEEL NECK TREE TOTAL TRAIL EXTENSION PART
SIZE RAKE RAKE RAKE DIM LENGTH NUMBER
1986-08 26”
7 9 42 7.4” 1”
NRBK7S-9-08
1986-08 26”
9 9 44 7.9” 2”
NRBK9S-9-08
1986-08 30”
9 12 47 7.5” 3”
NRBK9S-12-08
2009-13 26”
7 9 42 7.4” 1”
NRBK7S-9-09
2009-13 26”
9 9 44 7.9” 2”
NRBK9S-9-09
2009-13 30”
9 12 47 7.5” 3”
NRBK9S-12-09
2014-up 26”
7 9 42 7.2” 1”
NRBK7S-9-14
2014-up 26”
9 9 44 7.7” 2”
NRBK9S-9-14
2014-up 30”
9 12 47 7.2” 3”
NRBK9S-12-14
Neck Rake Kits are offered in both
Standard Neck Length and the ALL
NEW Short Length Neck Tube Style with
Radius Triple Tree. Stretch it out or
Drop it to the ground with one of our
many kits.
We take the guesswork work out of
determining the correct rake and fork
extension necessary to achieve proper
chassis geometry so your ride looks
and handles just like you want.
We have multiple designs available on
our website for you to reference when
selecting the best set up for your next
project.
