HD
®

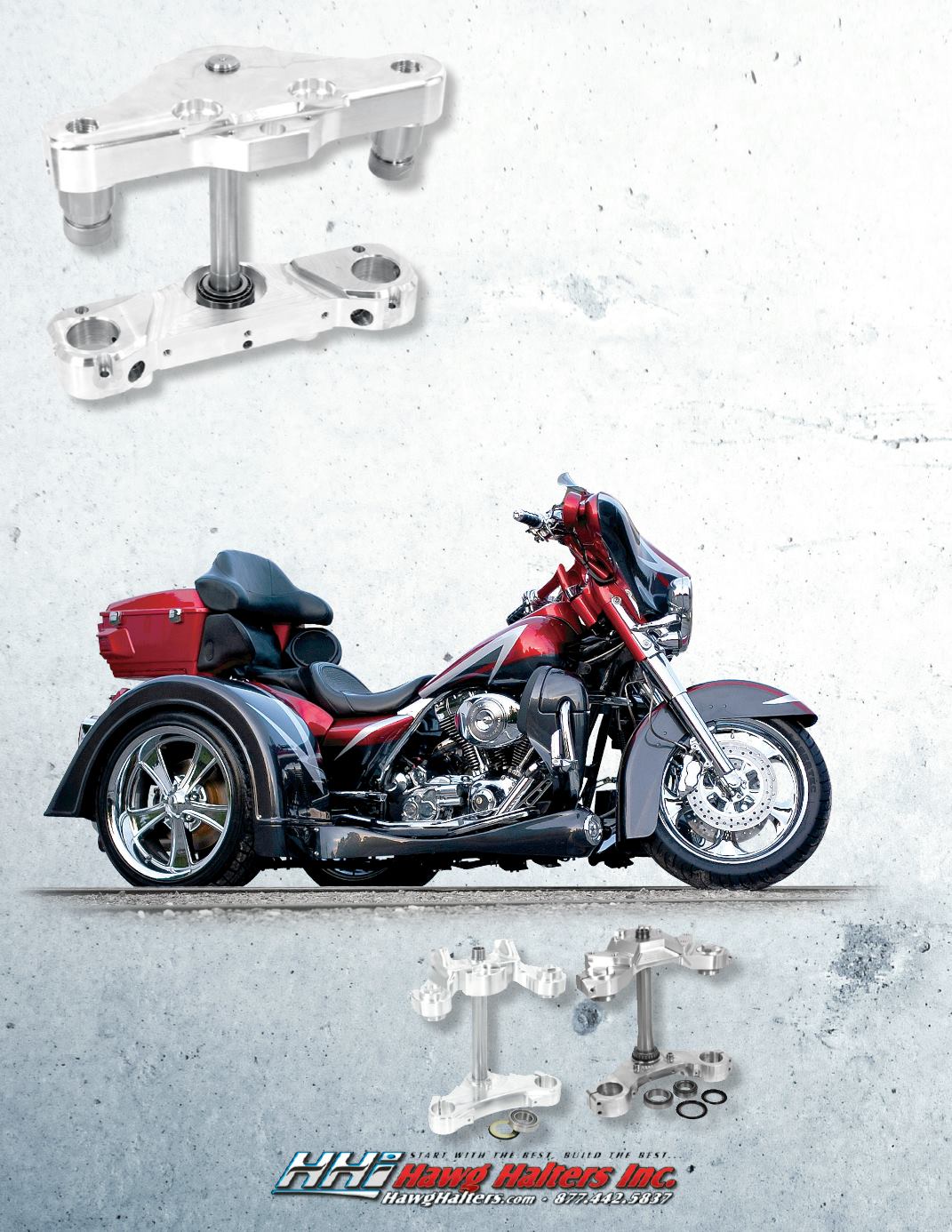

Touring Model
Raked Triple Tree Kits
HD® FL Touring model raked triple tree kits are designed
for retrofit to all 1996-up FL model trike conversions.
These trees provide for a much easier steering trike and
are available in 7º, 9º and 12º rakes for various trike
applications. Kits include the proper fork tube extension for
the application and do not require longer fork covers.
The 7 degree rake is recommended for the shortest wheel
base trikes. The 9 degree is the industry standard and
most commonly used rake kit. The 12 degree version was
recently introduced for use on the new extended
wheelbase trike conversions or when installing a larger
front wheel on a trike set up. Consult our sales staff for
best fit application.
We do not recommend the installation of these kits on any
two-wheel motorcycle with a wheel size of 21” or smaller.
See the following pages for proper application information.
41FLMR7
– 7 degree rake
41FLMR9
– 9 degree rake
41FLMR12
- 12 degree rake
41FL-AIR
– Air fitting adaptor kit, 1998-2001
Honda
®
Goldwing
Steering Kits
These Triple Trees are specifically
designed by HHI for Honda® Trike Conversions.
GL1800 available in either +4º or +6º rake
GL1500 available in either +4º or +6º rake
45HGWMR4
-
GL1800 4º Kit
—————————————
45HGWMR6 -
GL1800 6º Kit
41HGWMR4 -
GL1500 4º Kit
—————————————
41HGWMR6 -
GL1500 6º Kit
