NRBK9-9-08-A
——————————————————————
NRBK-7-9-14+1
————————————————
NRBK-7-9-14+1
————————————————————————
STANDARD LENGTH NECK
YEAR WHEEL NECK TREE TOTAL TRAIL EXTENSION PART
SIZE RAKE RAKE RAKE DIM LENGTH NUMBER
1986-08 23”
7 7 40 7.4” 1”
NRBK7-7-08
1986-08 26”
7 9 42 7.2” 2”
NRBK7-9-08+1
1986-08 26”
9 9 44 7.9” 2”
NRBK9-9-08+1
1986-08 30” 9 12 47 7.5” 3”
NRBK9-12-08+2
2009-13 23”
7 7 40 7.4” 1”
NRBK7-7-09
2009-13 26”
7 9 42 7.2” 2”
NRBK7-9-09+1
2009-13 26”
9 9 44 7.9” 2”
NRBK9-9-09+1
2009-13 30”
9 12 47 7.5” 3”
NRBK9-12-09+2
2014-up 23”
7 7 40 7.4” 1”
NRBK7-7-14
2014-up 26”
7 9 42 7.0” 1”
NRBK7-9-14
2014-up 26”
9 9 44 7.7” 2”
NRBK9-9-14+1
2014-up 30”
9 12 47 7.2” 3”
NRBK9-12-14+2

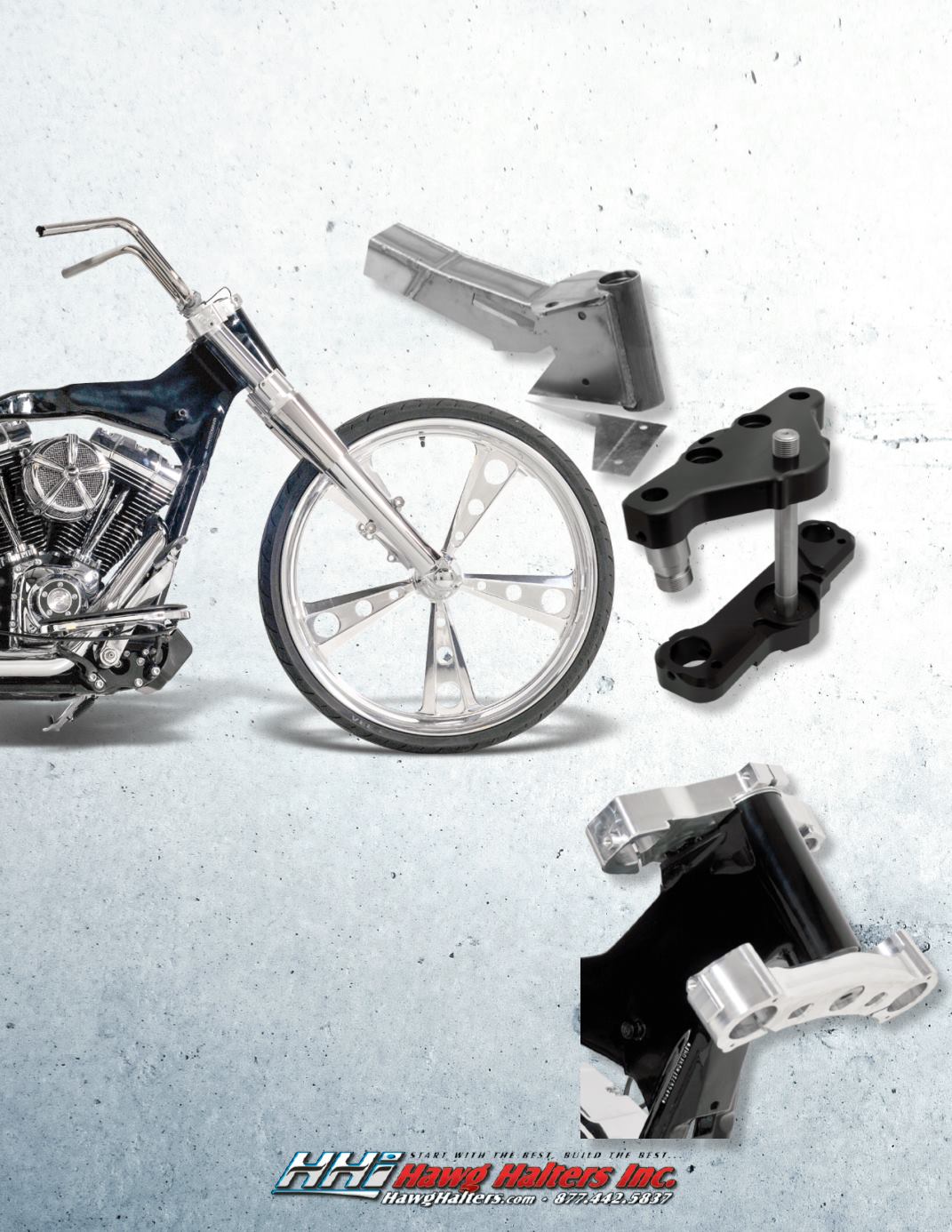

Bagger Neck Rake Systems
HHI has designed an assortment of weld-on neck rake sections in various rake angles and stretches for FL Touring model
frames. The engineering behind this PATENTED product provides a structurally sound method of altering your existing
frame geometry with ease and accuracy. When combined with one of our raked triple trees, the resultant chassis
geometry will be correct for the application. HHI offers its Builder Kits for 23”, 26” and 30” wheels in different
configurations depending on the preferred final overall chassis design.
